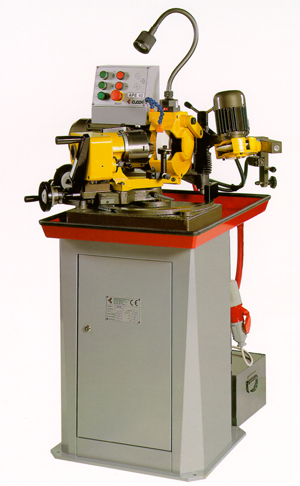

Drill Point Grinder - Cuoghi APE 40 & APE 40 Automatic

Technical Data
Diameter range 2 - 40 mm / 0.078" - 1.575"
Left or right cutting edges from 1 -12 lips
Point angle 40 - 180
Control panel 24 V
Point grinding electric spindle power 1.5 KW
Point splitting electric spindle power 0.18 KW
Pump motor power 0.06 KW
Revolution ratio between spindle and cam 1:1 and 1:2

Standard Equipment
Precision 6-jaws chuck
4 cams for right hand tool with 1-2-3-4-6 cutting edges
Morse Cone MC1, MC2, and MC3 and MC4
Grinding wheel for point grinding 200 x 25 x 32
Grinding wheel for point thinning 125 x 13 x 20
Point spliting electric spindle
Equipment for grinding wheel dresser
Wheel dresser diamond ct. 0.5
Instructions book

Shipping information:
net/gross weight 180/210 kg
1 create 80x80x145 cm

Price List APE40
Price List APE40Auto
Operating Manual
Video APE25/40/60

Examples

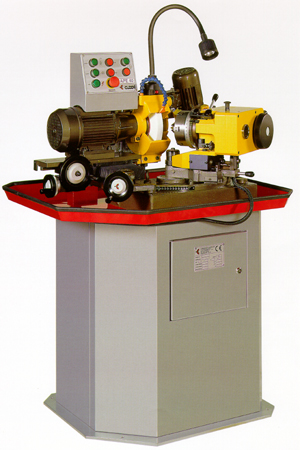

APE 40 Automatic

Technical Data
Diameter range 2 - 40 mm / 0.078" - 1.575"
Left or right cutting edges from 1 -12 lips
Point angle 40 - 180
Control panel 24 V
Point grinding electric spindle power 1.5 KW
Point splitting electric spindle power 0.18 KW
Pump motor power 0.06 KW
Revolution ratio between spindle and cam 1:1 and 1:2

Standard Equipment
Automatic rotation of workhead
Precision 6-jaws chuck
4 cams for right hand tool with 1-2-3-4-6 cutting edges
Morse Cone MC1, MC2, and MC3 and MC4
Grinding wheel for point grinding 200 x 25 x 32
Grinding wheel for point thinning 125 x 13 x 20
Point spliting electric spindle
Equipment for grinding wheel dresser
Wheel dresser diamond ct. 0.5
Instructions book

APE 40 Manual

*All prices & specifications subject to change without notice.
