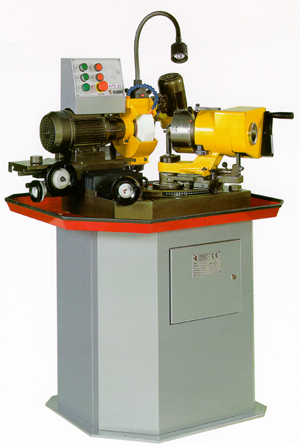

Drill Point Grinder - Cuoghi APE 60

Technical Data
Diameter range 3 - 60 mm / 0.118" - 2.362"
Right or left cutting edges from 1 to 12 lips
Point angle 40 - 180
Control panel 24 V
Point grinding electric spindle power 1.5 KW
Point splitting electric spindle power 0.18 KW
Pump motor power 0.06 KW
Revolution ratio between spindle and cam 1:1 / 1:2

Standard Equipment
Precision 6-jaw chuck
Set of 4 cams for right hand tool with 1-2-3-4-6 cutting edges
Morse Cone MC5
Grinding wheel for point grinding 200 x 45 x 32
Grinding wheel for point thinning 125 x 13 x 20
Point splitting electric spindle
Cooling system
Equipment for grinding wheel dresser
on the right side of the grinding wheel
Wheel dresser diamond ct. 0.5
Instructions book and service keys

Shipping information:
net/gross weight 280/300 kg
1 create 80x85x145 cm

Price List APE60
Operating ManualVideo APE25/40/60

Examples

*All prices & specifications subject to change without notice.
